Echo Extraction — WI937 (Wallops Island, older VIPIR format)¶

Dynasonde-Style Seven-Parameter Analysis — VIPIR Version 0

Load a VIPIR .RIQ binary file recorded by the WI937 sounder at Wallops Island (2022) using the older vipir_version=0 format, run the seven-parameter echo extractor, and produce a 2×3 diagnostic figure.

This page explains examples/vipir/echo_extraction_wi937.py.

How this example differs from the PL407 example

Aspect	PL407 (2024)	WI937 (2022)
`vipir_config`	`configs[0]`	`configs[1]`
`vipir_version`	1	0
`data_type`	2	1
Frequency sweep	linear step	logarithmic step
Ionogram x-axis	linear	log scale

The only code change needed to switch formats is the vipir_config argument to RiqDataset.create_from_file(). All echo-extraction and plotting logic is identical.

Call Flow¶

RiqDataset.create_from_file(fname, vipir_config=VIPIR_VERSION_MAP.configs[1])
    └─ sct       — frequency schedule uses log_step (fractional)
    └─ pulsets   — one Pulset per frequency step

EchoExtractor(sct, pulsets, snr_threshold_db=3.0)
    .extract()
           │
    ┌──────┴───────┐
    ▼              ▼
.to_dataframe()  .to_xarray()

Step-by-Step¶

1 — Load the WI937 RIQ file¶

from pynasonde.vipir.riq.parsers.read_riq import VIPIR_VERSION_MAP, RiqDataset

riq = RiqDataset.create_from_file(
    "examples/data/WI937_2022233235902.RIQ",
    unicode="latin-1",
    vipir_config=VIPIR_VERSION_MAP.configs[1],   # version 0, data_type=1
)

# Inspect the frequency schedule
print(riq.sct.frequency.base_start)   # start frequency (kHz)
print(riq.sct.frequency.base_end)     # end frequency (kHz)
print(riq.sct.frequency.log_step)     # fractional log step (e.g. 0.05 = 5%)
print(riq.sct.frequency.linear_step)  # 0 when purely log-stepped

The configs[1] entry in config.toml sets vipir_version=0 and data_type=1, which tells the parser to read I/Q samples as single-precision floats using the older interleaved layout.

2 — Run EchoExtractor¶

from pynasonde.vipir.riq.echo import EchoExtractor

extractor = EchoExtractor(
    sct=riq.sct,
    pulsets=riq.pulsets,
    snr_threshold_db=3.0,
    min_rx_for_direction=3,
    max_echoes_per_pulset=5,
)
extractor.extract()

The extractor API is identical regardless of VIPIR version — only the file loading step changes.

3 — Export and inspect¶

df = extractor.to_dataframe()
ds = extractor.to_xarray()

# NaN-fraction diagnostic
for col in ("xl_km", "yl_km", "polarization_deg", "residual_deg"):
    n_nan = df[col].isna().sum()
    valid = len(df) - n_nan
    print(f"  {col:20s}: {valid}/{len(df)} valid ({100*valid/len(df):.0f}%)")

4 — Ionogram on a log frequency axis¶

Because WI937 uses a logarithmic frequency sweep the sounding frequencies are spaced evenly in log space, not linear space. The ionogram panel therefore uses a log x-axis:

ax.set_xscale("log")

This keeps frequency steps visually uniform, exactly as they were transmitted. The PL407 linear-sweep example uses a linear x-axis.

Diagnostic figure panels¶

Panel	Contents	X-axis	Y-axis	Colour
(A) Ionogram	All echoes	Frequency MHz (log)	Virtual height km	Amplitude dB
(B) XL vs Height	Eastward echoes	XL km	Virtual height km	Frequency MHz
(C) YL vs Height	Northward echoes	YL km	Virtual height km	Frequency MHz
(D) Echolocation map	XL vs YL	XL km	YL km	Amplitude dB
(E) Doppler velocity	V* profile	V* m s⁻¹	Virtual height km	Frequency MHz
(F) Polarization	PP profile	PP °	Virtual height km	Frequency MHz

VIPIR version map¶

config.toml defines two entries under [[vipir_data_format_maps.configs]]:

[[vipir_data_format_maps.configs]]
vipir_version = 1          # configs[0] — newer format (PL407, 2024)
data_type     = 2
np_format     = "float32"

[[vipir_data_format_maps.configs]]
vipir_version = 0          # configs[1] — older format (WI937, 2022)
data_type     = 1
np_format     = "float32"

Pass the correct entry via the vipir_config argument:

# Newer files (data_type=2)
riq = RiqDataset.create_from_file(fname, vipir_config=VIPIR_VERSION_MAP.configs[0])

# Older files (data_type=1)
riq = RiqDataset.create_from_file(fname, vipir_config=VIPIR_VERSION_MAP.configs[1])

Run¶

cd /home/chakras4/Research/CodeBase/pynasonde
python examples/vipir/echo_extraction_wi937.py

Output figure¶

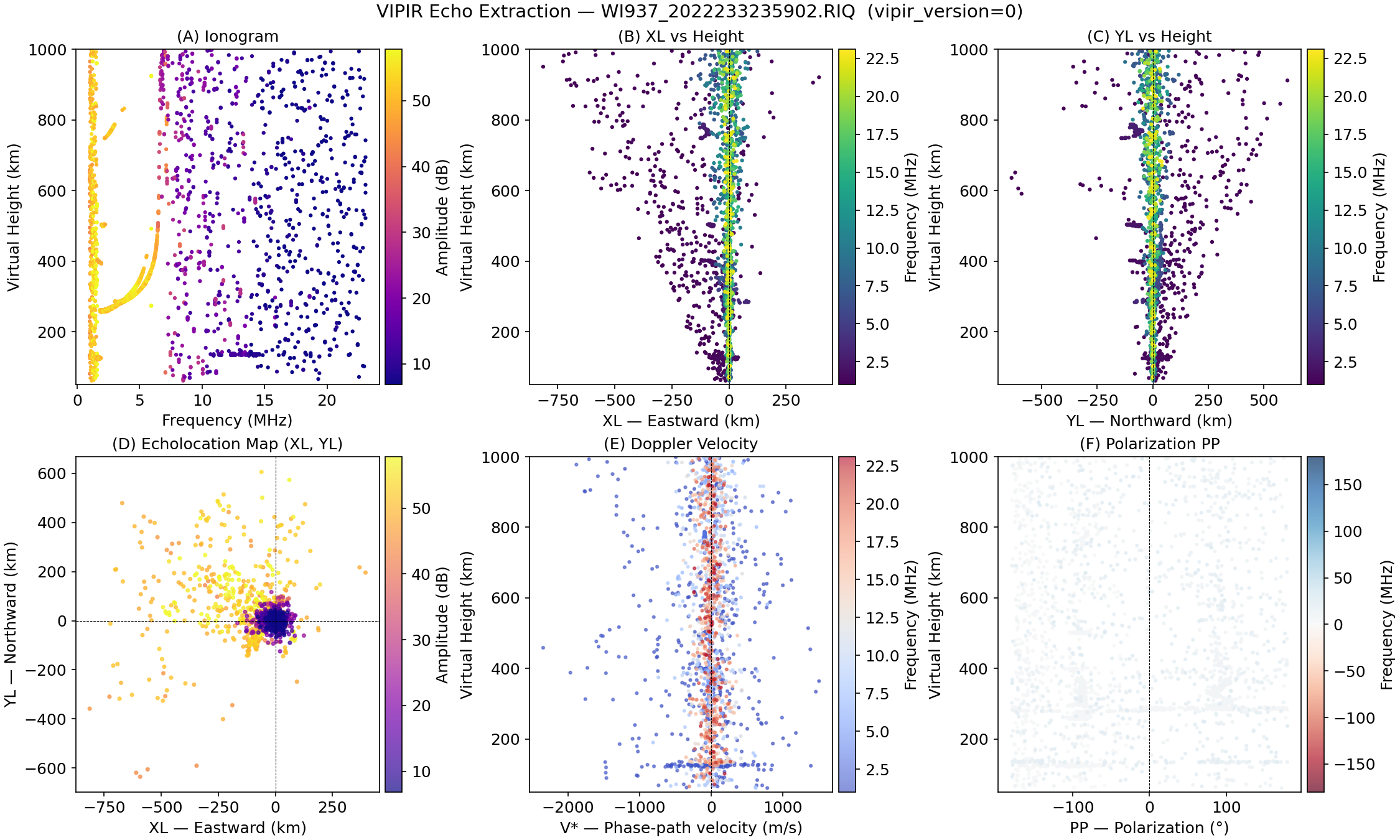

WI937 Echo Extraction — 2×3 diagnostic figure for WI937 2022-08-21 23:59 UT. Panel A uses a log frequency axis matching the instrument's logarithmic sweep schedule.

examples/vipir/echo_extraction_wi937.py
examples/vipir/echo_extraction.py — PL407 counterpart (linear sweep)
pynasonde/vipir/riq/echo.py — Echo, EchoExtractor
pynasonde/vipir/riq/parsers/read_riq.py — RiqDataset, VIPIR_VERSION_MAP
pynasonde/config.toml — version map entries
